Hydraulic crawler drilling rig mining rotary borehole deep rock drilling rigs for sale
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

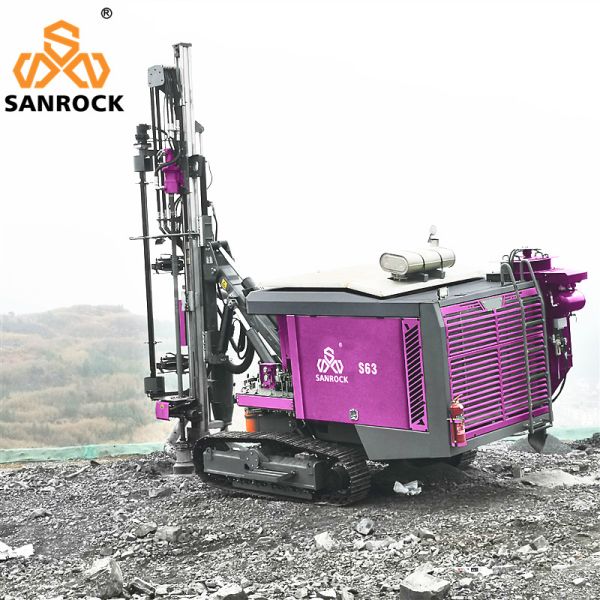

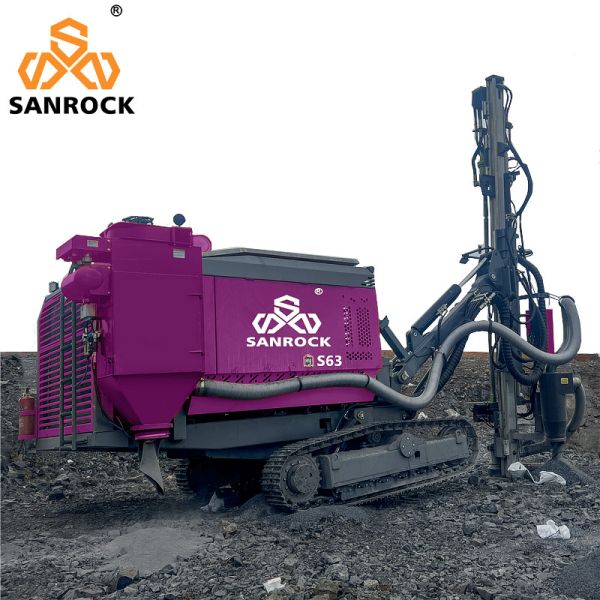

S63 Hydraulic Crawler DTH drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change.
New enclosure design for convenient maintenance and bette rig appearance.
Equipped with high efficient dry dust collection device for dust free,more eco-friendly&energy saving.
Standard equipment Piston motor&international standard tramming track for more powerful climbing ability, more reliable quality&more efficient tramming.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.
Products Description
| Product name | Integrated Drilling Equipment |
| Type | Rotary Drilling Rig |
| Power Type | Diesel |
| Engine | Cummins 194KW(Ⅲ) |
| Application | Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works |
| Dimension(L*W*H) | 6000X2300X2600 mm |
| Weight | 8850KG |
| Key Selling Points | High efficiency, high production capacity,Competitive Price |
| Drilling Diameter | 115-150mm |
| Drilling Depth | Max.30m |
| Drilling hardness | f=6~20 |
| Volune of diesel oil tank | 280 L |
| Method of dust collecting | 14 Core Dry type |
| Compressor F.A.D | 540 CFM |
| Compressor pressure PSI | 17bar |
| Air end | Two stage compression |
| Feed stroke | 3690mm |
| Maximun push-pull force | 20kn |
| Compensation length | 900mm |
| Lifting force | 25 kn |
| Method of Feed | motor+roller chain |
| Travelling speed | 1.5~4 km/h |
| Climbing capacity | 30° |
| Ground clearance | 360 mm |
| Drilling rod | 6+1, φ 76mmX3000/2000mm |
| DTH hammer | 3"/4"/5'' |
| Working Pressure | 1.8 Mpa |
| Air consumption | 16 m3/min |
| Rotary torque (Max.) | 3300 N. m |
| Rotary speed | 0-120 r/min |
1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.
2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.
3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.
5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
